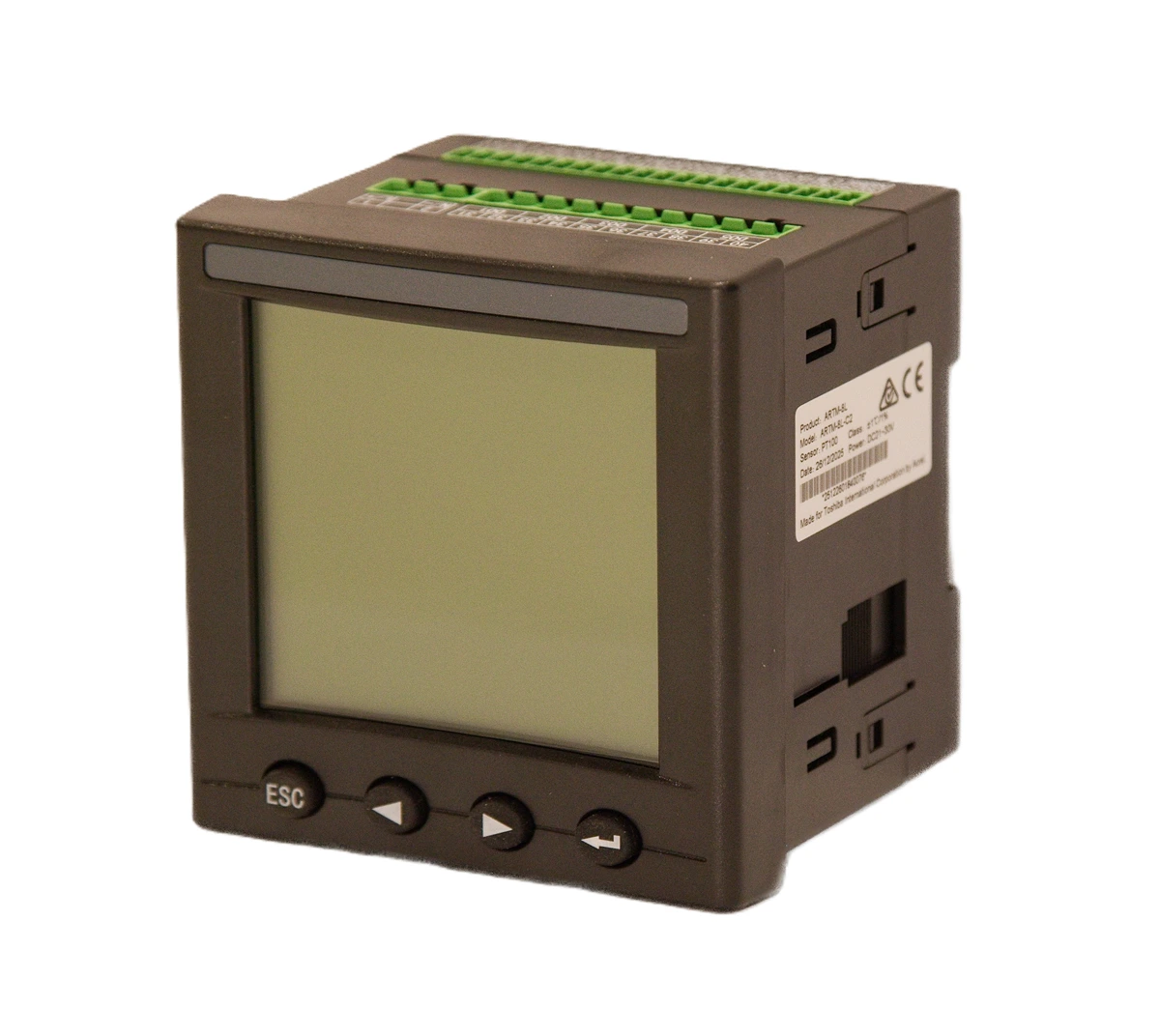

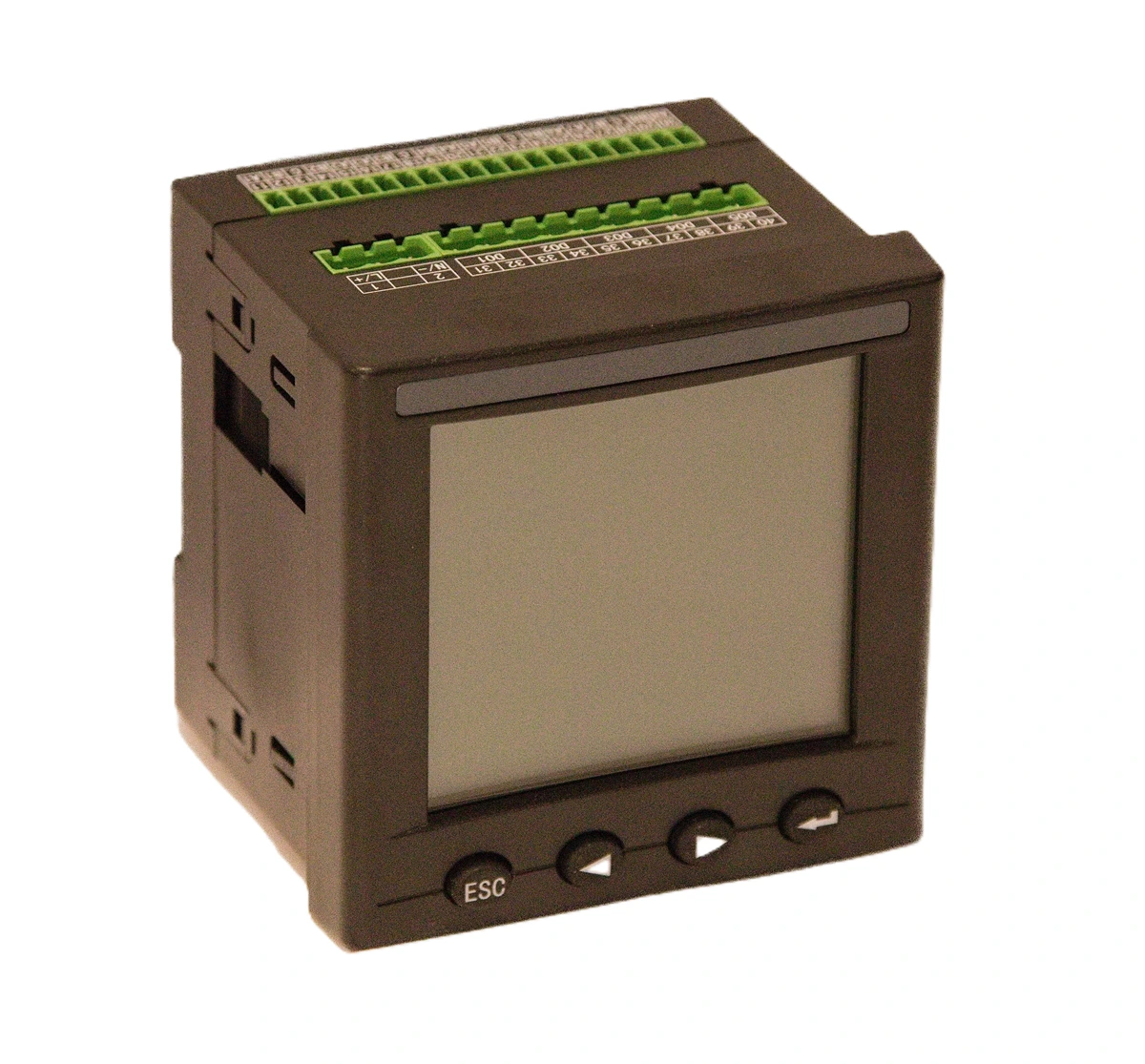

TIC-TPR8
Temperature Protection Relay

Advantages

• The TIC-TPR8 combines eight independent Pt100 RTD inputs, configurable alarm levels, event logging, analogue outputs, and Modbus RTU communication in a compact, easy-to-integrate design. Flexible configuration and seamless integration with industrial control and monitoring systems make it ideal for both new installations and retrofit applications, delivering reliable thermal protection, rapid fault detection, and improved asset reliability.

Standard Features

• 8 independent Pt100 RTD input channels (3-wire connection) for multi-point temperature monitoring and protection
• High-accuracy temperature measurement from -200°C to +850°C (sensor dependent)
• Auxiliary power supply options: 85-265 VAC or 21-30 VDC
• Five programmable alarm relay outputs with adjustable hysteresis settings
• Configurable high and low temperature alarms with up to five alarm levels per channel for staged warning and trip protection
• Up to three 4-20 mA analogue outputs assignable to any temperature channel
• RS485 communication with Modbus RTU protocol

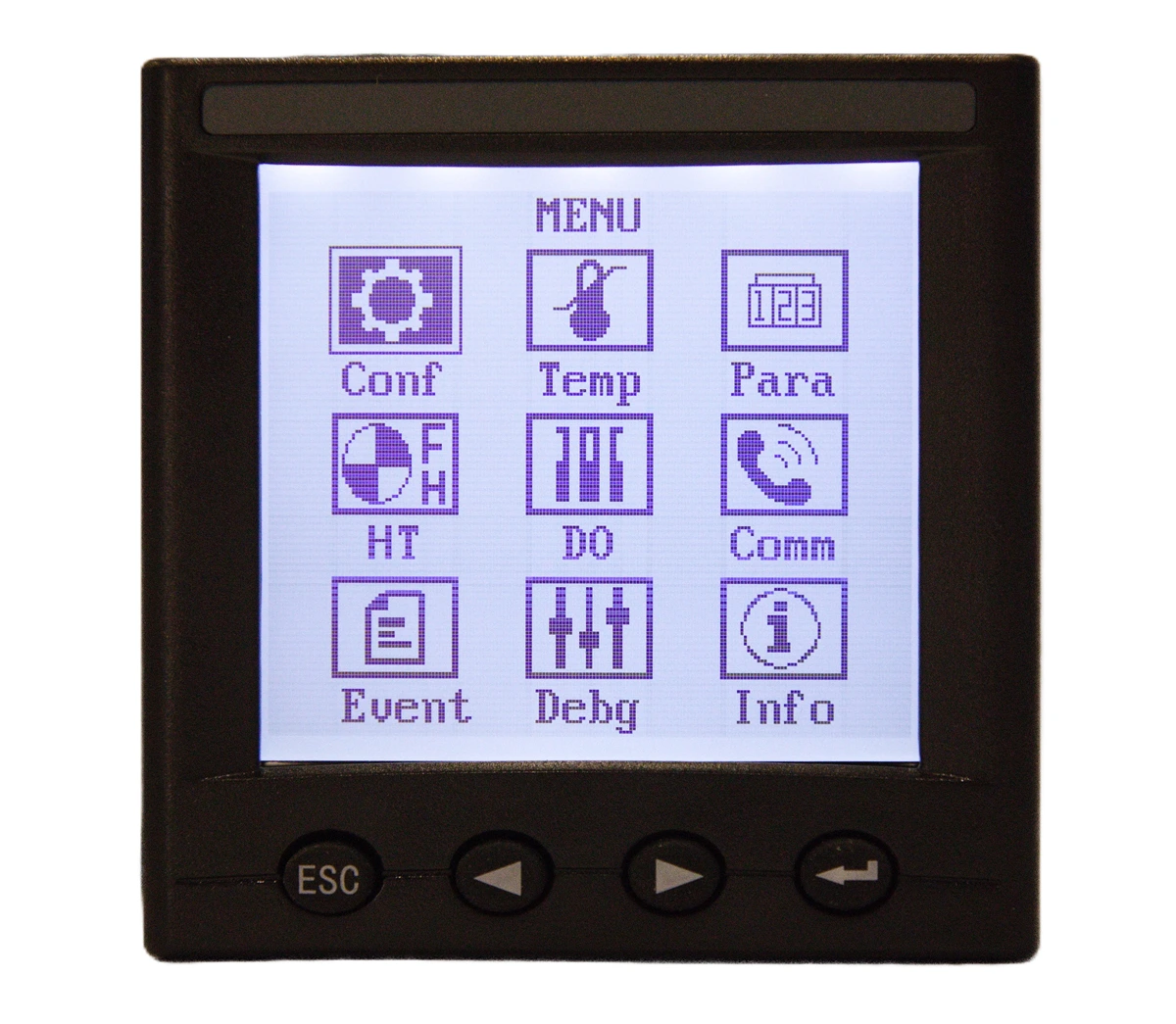

• LCD display with real-time temperature indication and relay status
• Alarm event recording with date and time stamps
• Password-protected configuration and settings management
• Panel mount or DIN rail installation
• Low power consumption (≤ 2 W)
• CE and RCM certified

Applications

• LV & MV Motors (Stator Windings & Bearings)
• Transformers
• Switchgear, MCCs & Electrical Enclosures
• Generators & Rotating Machinery
• Gearboxes & Mechanical Equipment
• Industrial, Retrofit & Upgrade Applications
