EV8 Variable
Speed Drive
Key Benefits

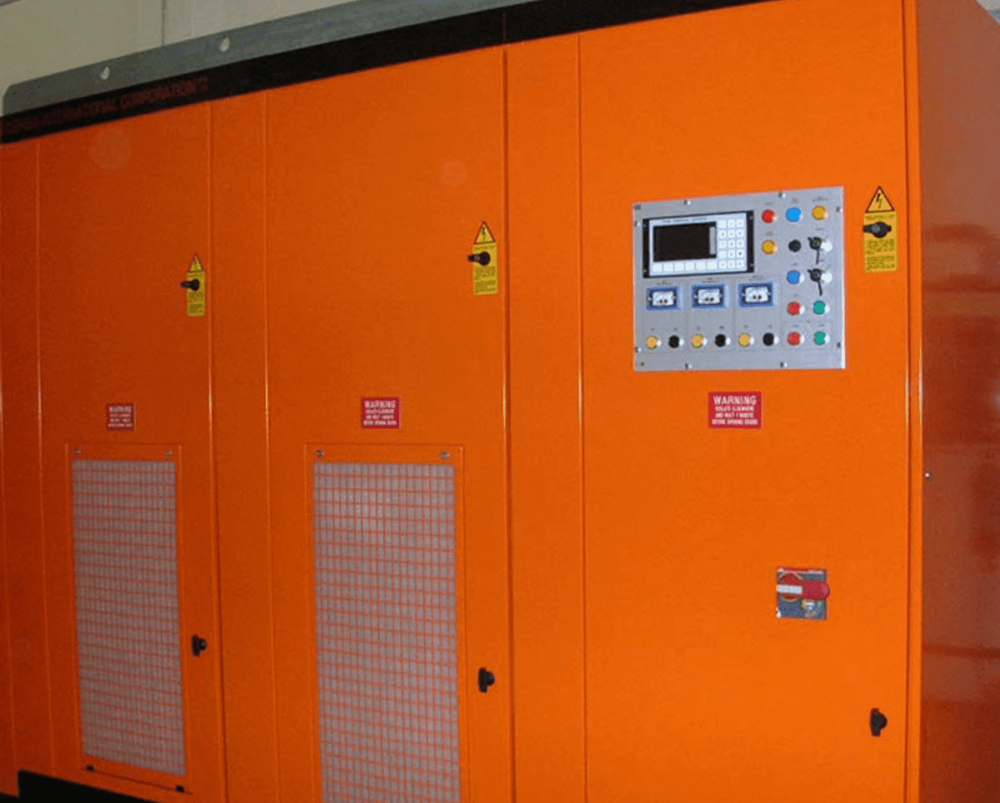

EV8 series variable speed drives are designed to control 415V or 690V large kW motors up to 1500kW. These high-performance drives are suitable for dusty industrial environments because they are supplied in IP54 enclosures complete with input and output filters as standard. Active Front End (AFE) technology is employed in the series to overcome and almost eliminate problems caused by harmonics.
Advantages
- Suitable for speed control of large kW LV motors
- Active front end reduces supply line harmonics
- Improves the power factor to near unity (p.f. > 0.99)
- IP54 cubicle is designed to protect against harmful deposits of dust
- Motor energy of high inertia loads is returned back to the power mains with the high dynamic performance
- Eliminates costly braking circuits and bulky resistance
- Extensive features for heavy-duty industrial speed control applications
Standard Features
- Wide range of power rating
- 3-phase 415V class 75kW to 900kW
- 3-phase 690V class 75kW to 1500kW
- 150% overload for 60 seconds
- Active Front End (AFE) technology for superb benefits as follows
- Reduces supply line harmonics
- Improves power factor to near unity (pf > 0.99)
- Obtains high performance during fast dynamic braking
- Eliminates costly braking circuits and bulky resistance
- Engineered to match specific application requirements
- Built-in EMC and dv / dt filters
- Multiple options of control approaches: Local and Remote, serial communications etc.
- Programmable input / output terminals
- Communication and protocols:
- RS-485 for portable units or host computer
- CAN
- DeviceNet
- Profibus DP
- Compliant with international standards:
- IEC / CEI-EN61800-2, -3, -3/A11
- IEC/ CEI EN60204-1
- IEC / CEI-EN50170
- AS 61800-3
- C-Tick
Applications
- Conveyors driven by single or multiple motors
- Industrial pumps
- Industrial fans
- Other general applications requiring large power drives using LV motors
