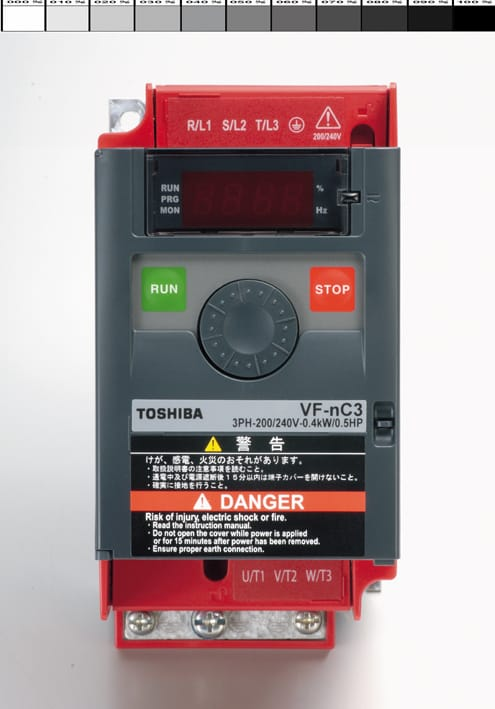

VF-nC3
Variable Speed Drive

Advantages

• Simple operation: RUN and STOP keys and speed dial allow easy operation
• Simple setup: "turn-and-push" setting dial makes setup easy
• Easy to install with vertical main circuit block
• Easy to configure with quick access to frequently used parameters
• Long lifetime: designed for 10 years of operation
• Ambient temperature up to 60° C with derated current

Standard Features

• Wide range of power ratings: 1-ph 240V class 0.1 kW to 2.2kW, 3-ph 240V up to 4 kW
• 150% overload for 60 secs or 200% for 0.5 secs
• Simple installation: vertical orientation for easy wiring and side-by-side installation for space-saving
• Built-in RS-485 communication allows PC to manage parameters and monitor operating conditions
• Excellent motor control using sensor-less vector control and energy-saving mode
• Secure parameter settings: through four-digit password with saving-and-restoring parameter functions
• Eco Design: compliant with the European RoHS Directive
• Compliant with international standards:
  • IEC / CEI-EN61800-3 at environment C1
  • CE marking, UL, and CSA

Applications

• Transportation machines: Conveyer, automatic warehousing systems, etc.
• Food processing machines: Bread-makers, confectionery machines, tea-making machines, wheat vermicelli-making machines, rice/wheat-polishing machines, mixers, slicers, grading of fruit machines, etc.
• Fans and pumps: industrial machines, buildings, water supply, drainage systems, dryers, etc.
• General-purpose machines in any industry
